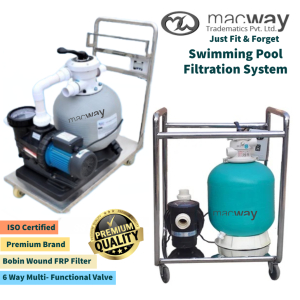

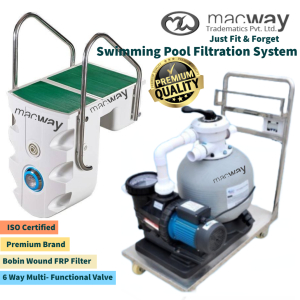

Swimming Pool Filtration System

30,800.00 - 1.25 Lac / piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Macway
Material Bobbin Wound FRP And Acrylic
Country of Origin Made In India
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Flow Rate
8000 Litres to 45000 LPH (Depends on Size) / 10000 to 35000 LPH for Wall Mounted Filter.
0.5HP to 4HP (Depends on Filtration Plant Size)
Swimming Pool Cleaning
5 Years for sand filter and 1 Year on pump.
40 Kgs to 150 Kgs (Depends on Size)
Maximum Filtration Velocity
8000 Litres to 45000 LPH (Depends on Size) / 10000 to 35000 LPH for Wall Mounted Filter.
Testing Pressure
58 PSI
Size of Silica Sand
0.5 mm to 0.8 mm
Valve Type
6 Way Functional Multi Port Valve
Integrated Filter Combo
Filter Area
0.13 m2 to 1.54 m2 (Depends on Size)
Cleaning System
Valve Size
1.5 inches to 2.0 inches
400 mm to 1200 mm
Green Blue and Grey
Low Noise
Silica Sand
0.5 mm to 0.8 mm
Maximum Working Pressure
36 PSI
Filter Media
Silica Sand is used as Filter Media and filter bag in wall mounted filter.
Pump Type
Pump Waterproof Standard
Product Code
Any port in India
Payment Terms
L/C, Other
Delivery Time
Ready Stock
Packaging Details
Products are packed in a High Strength Carton.

Macway Tradematics Private Limited is a supplier and manufacturer of swimming pool filtration systems. We are versed in all aspects of modern filtration vessels, matching them perfectly for the job required, within the design constraints of the plant room, and ensuring that the facility can still be operated in the event of planned maintenance or an unforeseen breakdown, with the plant operating at reduced capacity.

Chemical control equipment is tested in our workshops before being transferred to the site to ensure a smooth, trouble-free installation without delays. We offer a range of monitoring options for our systems including remote on-site, and remote off-site.

Since our inception, we are engaged in offering a wide range of excellent quality Swimming Pool Filtration Systems. This system is attached to a pump that generates high-pressure 250kpa/36psi/2.5bar.

The system is equipped with filters and an attached pump that cleans pressurizes and pumps the water back to the swimming pool. The provided system can handle the water temperature of 40 degrees Celsius competently. In addition, the advanced technology empowered in the system help provides high performance to the clients.

Order our swimming pool filtration system today.

Macway Pool, a unit of Macway Tradematics Private Limited is an ISO certified top swimming pool brand, we are direct manufacturer and Importer with best in the industry products. All our products passes through a multi-point quality check procedure.

We assure premium quality and best services to our valued customers.


Company Fact Sheet:

Company Name: Macway Tradematics Private Limited

Ownership Type: - Private Limited

Registered Office: Sonipat, Delhi NCR

Corporate Office: Rohini, Delhi

Year of Establishment: - 2004

Number of Employees: - 20+

Trade Mark: 6

Certifications and Registrations: GMP, ISO, FIEO, MSME, and DGFT.

Business Type: - Manufacturing and Importer

Country of Origin: - India

Total Manufacturing Units & Warehouse: 2

Main Products : - Pool Filtration System, Pool Pumps, Swimming Pool Lights, Swimming Pool Chemicals, Swimming pool equipment.

Main Export Marker: Europe, Asia and Middle East.


Product Details:

Type: Sand Filter Filtration Plant / Wall Mounted Pipeless Filter

Material: Triple wound FRP Filter (Fibre Reinforced Plastic) With Copper Motor Pump (IP55 Waterproof Standard)

FRP Filter Technology: Bobbin wound

Pump Technology: Low Noise, High Performance, UV Resistance and IP55 waterproof Standard.

Filter Valve: 6 way functional multi-port valve.

Sizes: 400mm to 1400mm diameters for Filters and 0.5Hp to 4HP Pump For Trolley Mounted FIlter and 10000 to 35000 Liters filtration for Wall Mounted pipeless filter.

Valve Size: 1.5" to 2" inches

Colour: Green/Blue/Grey

Working Pressure of Filter: 36 PSI

Testing Pressure of Filter: 58 PSI

Sand Media: 0.5mm to 1.2mm in Sand Filter and Filter Bag in Pipeless Filter

Quality: Premium Quality Product

Country of Origin: India / USA / Germany

Shape: Cylindrical

Flow Rate: 8000 Litters per Hour to 45000 Litters per hour

Size of Silica Sand for filter: 0.5mm to 0.8mm

Weight: 40Kgs to 150 Kgs Depends on Size.

Filter Area: 0.13 m2 to 1.54 m2

Features: 6 functional valve, Bobbin Wound Fiberglass, Top Brand, Direct Manufacturer, ISO Certified



ISO Certified,

FIEO Registered,

DGFT License,

Registration in Ministry of Corporate Affairs.


Packing Details:

Products are packed in a High Strength Carton.
